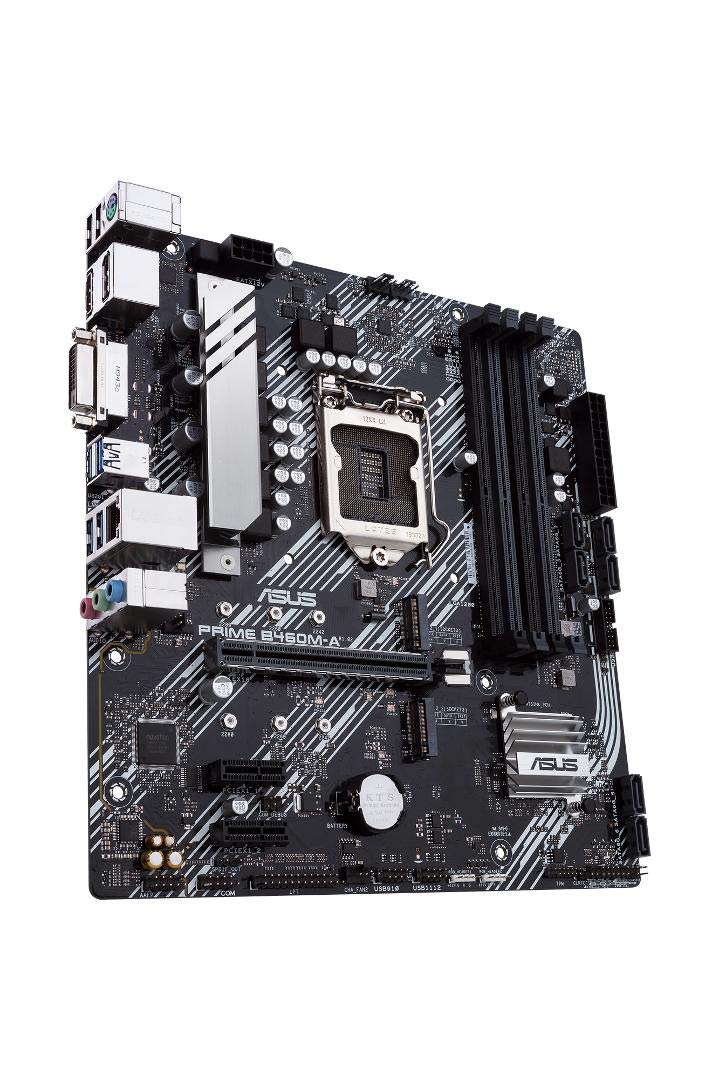

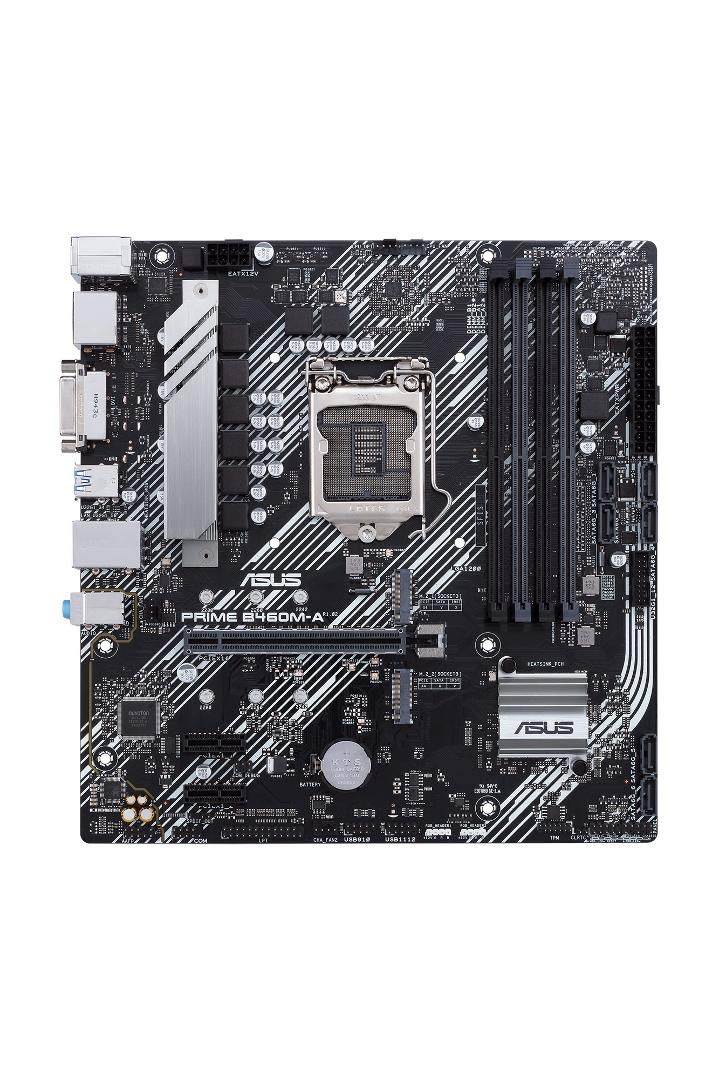

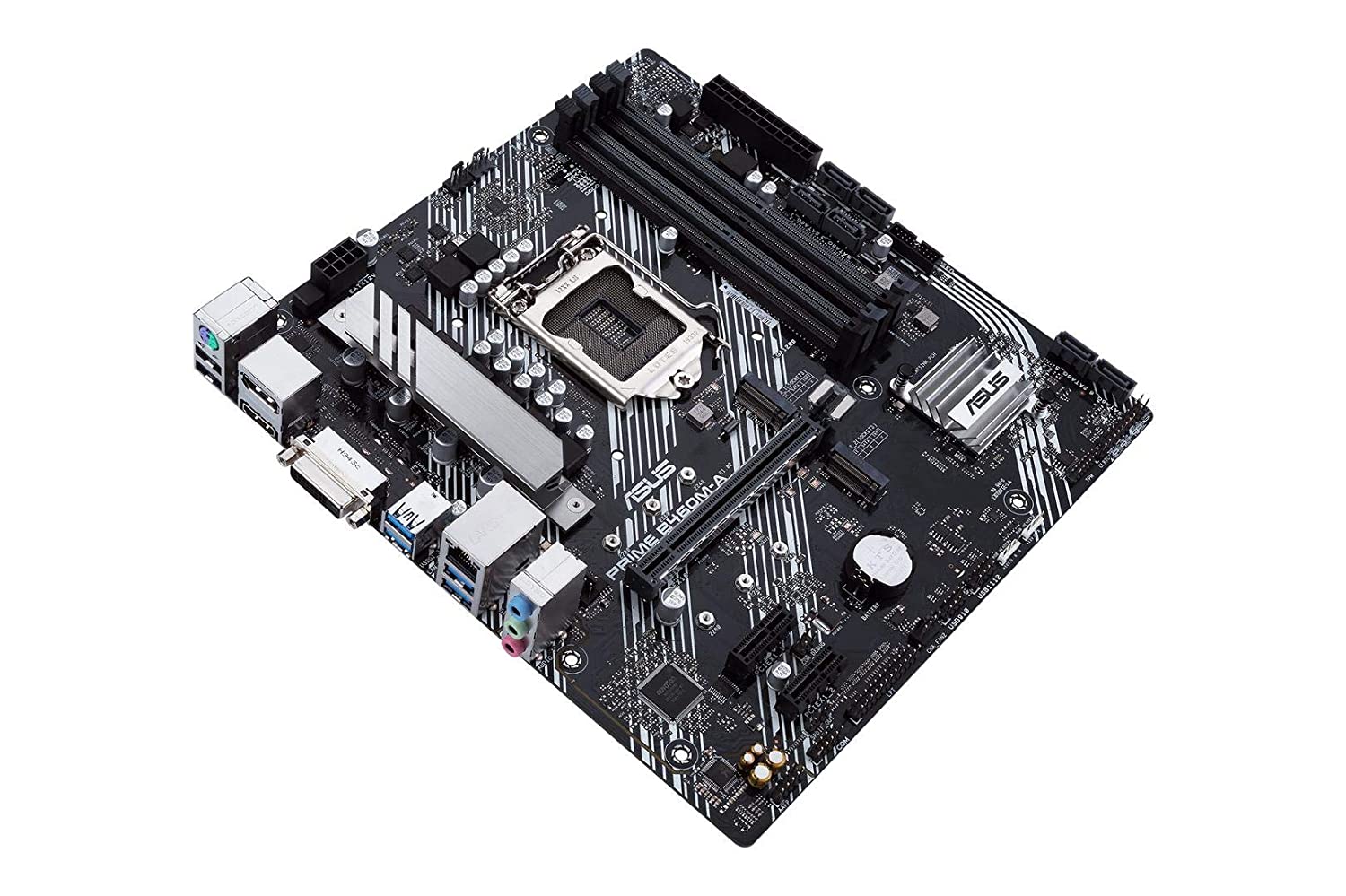

ASUS PRIME -B460M-A Motherboard
Roll over image to zoom in
₹9,649.00₹13,000.00 (-26%)
ASUS PRIME -B460M-A Motherboard:
- Intel ® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds
- Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
ASUS PRIME -B460M-A Motherboard
ASUS PRIME -B460M-A Motherboard is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B460 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS PRIME -B460M-A Motherboard. ASUS PRIME -B460M-A Motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
ASUS PRIME -B460M-A Motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
ASUS PRIME -B460M-A Motherboard features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Build on a Solid Foundation
ASUS PRIME -B460M-A Motherboard is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A B460 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Little Things Make a Big Difference
ASUS PRIME -B460M-A Motherboardadds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Technical Details of ASUS PRIME -B460M-A Motherboard:
CPU:
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Intel® B460
Memory:
Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic:
Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Expansion Slots:
Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B460 Chipset
2 x PCIe 3.0/2.0 x1
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B460 Chipset
2 x PCIe 3.0/2.0 x1
Storage:
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio:
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports:
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features:
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS Safeslot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
ASUS Sync
– Standard RGB header(s)
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS Safeslot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
ASUS Sync
– Standard RGB header(s)

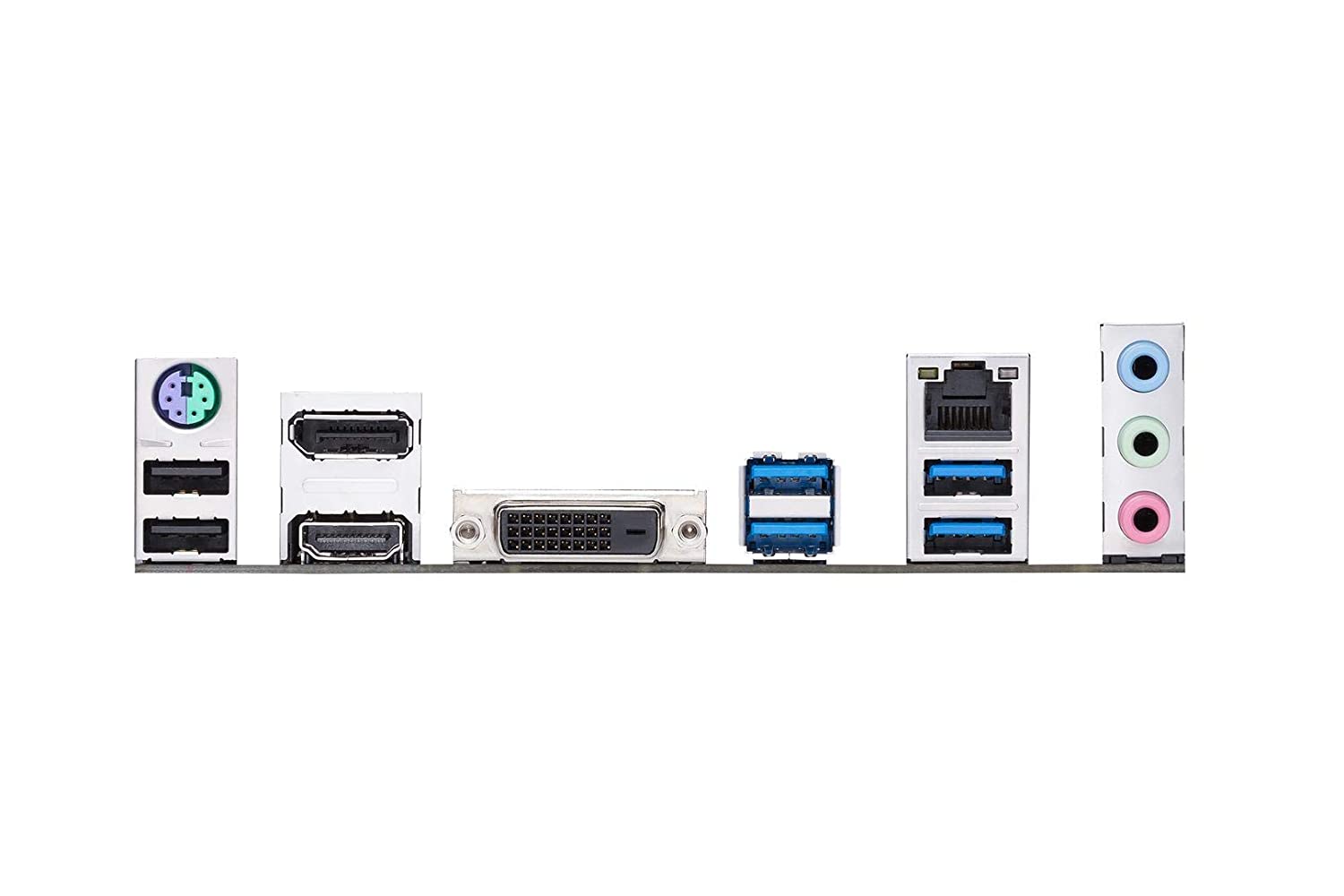

Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports:
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

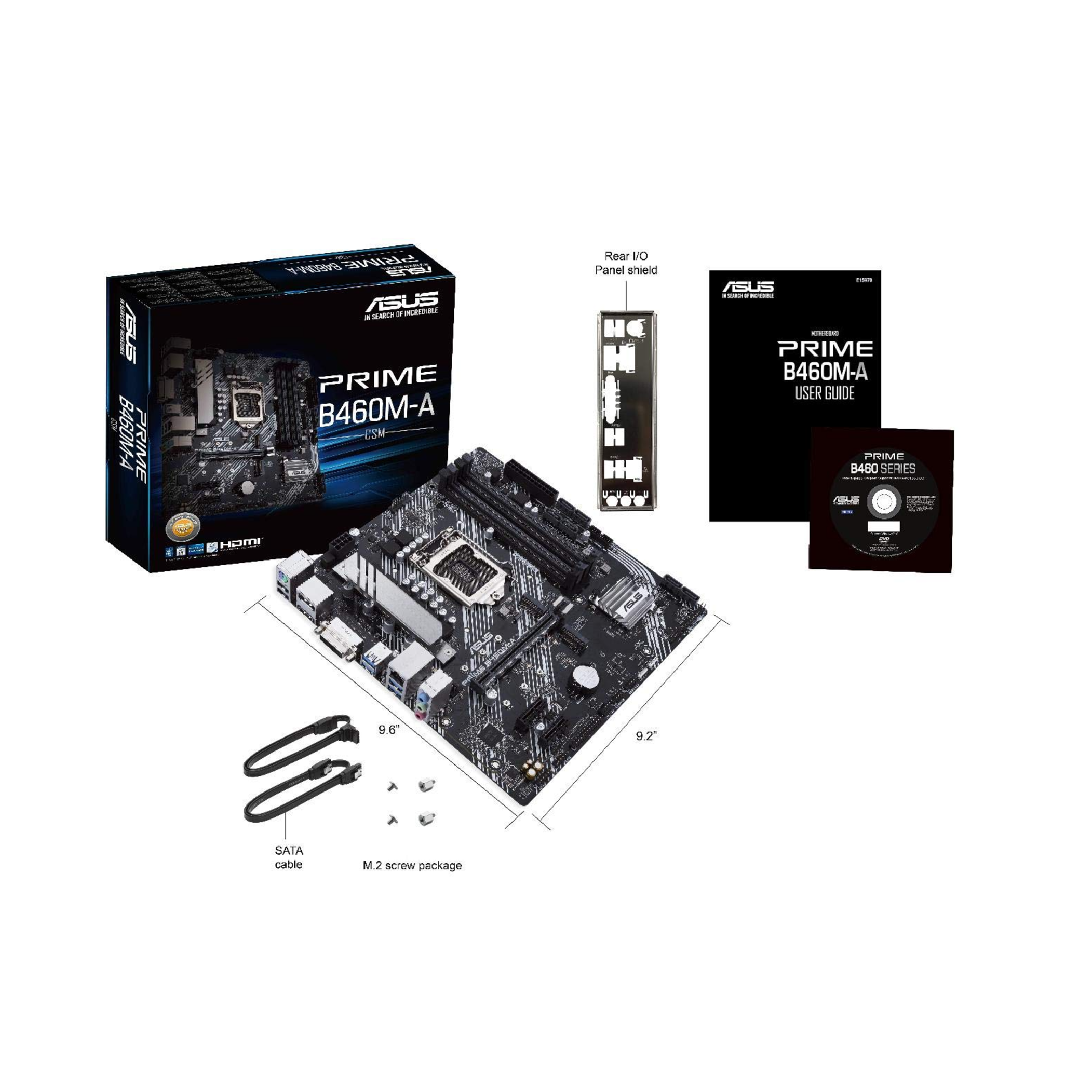

Accessories:
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows® 10 64-bit
Form Factor:
mATX Form Factor
9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Read More about ASUS PRIME -B460M-A Motherboard: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B460M-A/
Related Products: https://www.pcisland.in/?s=motherboard&post_type=product
Additional information
| Weight | 0.576 kg |
|---|---|
| Dimensions | 26 × 27 × 5.2 cm |
| Manufacturer | |
| Chipset | |
| Max Memory Support | |
| Memory Type | |
| Socket |
