GIGABYTE H410M H V2 Ultra Durable Motherboard with Intel®, GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

5,499.009,360.00 (-41%)

In stock

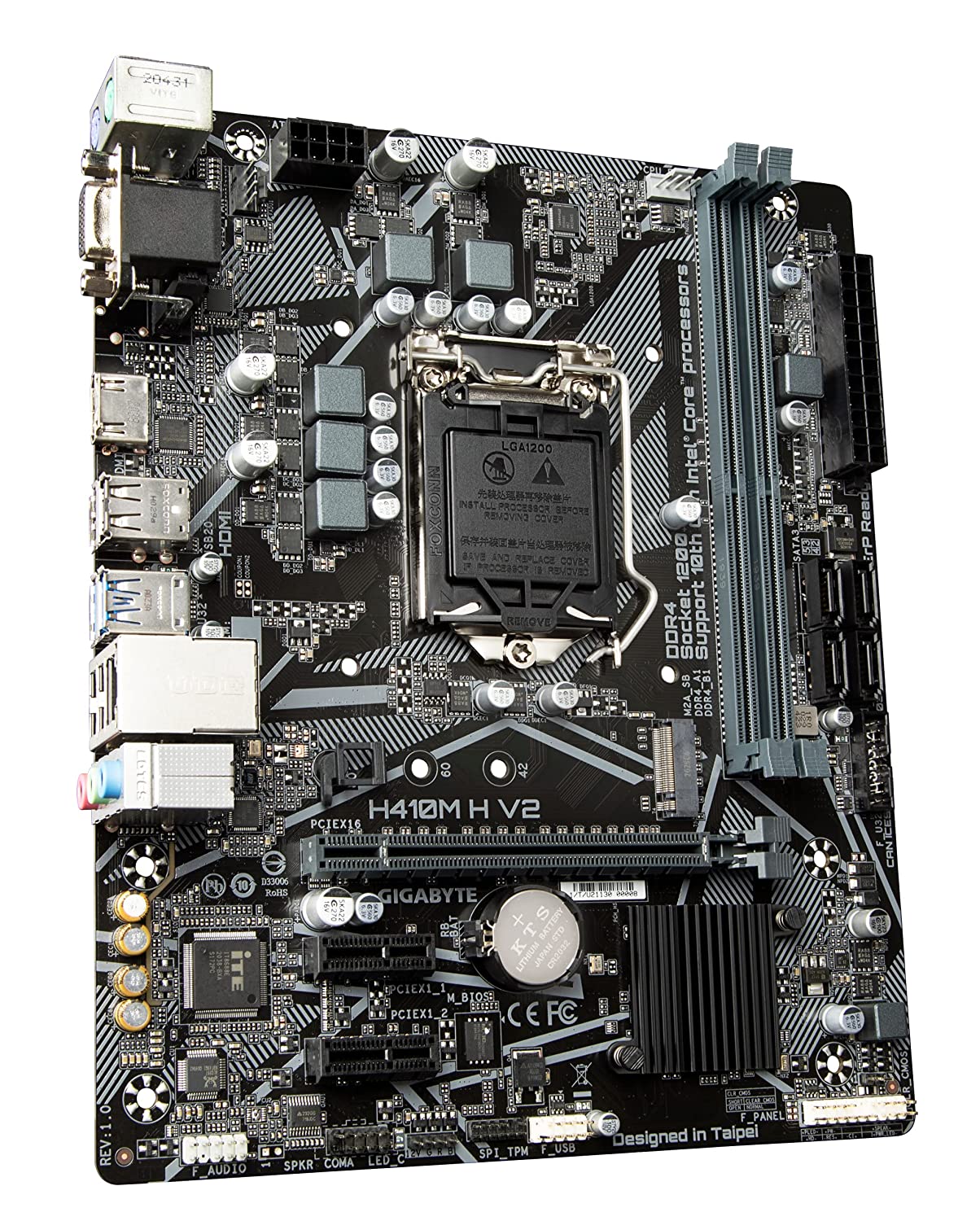

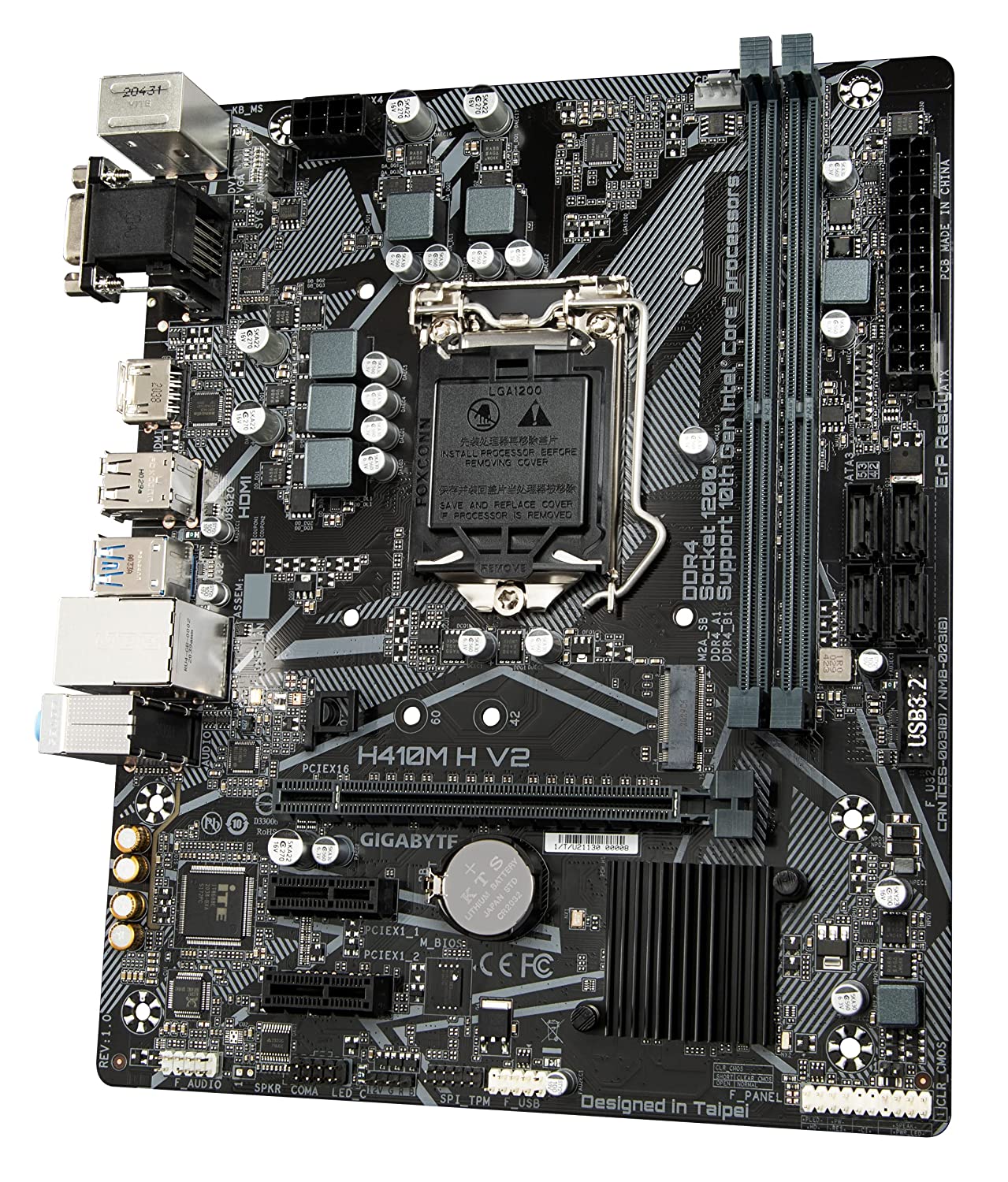

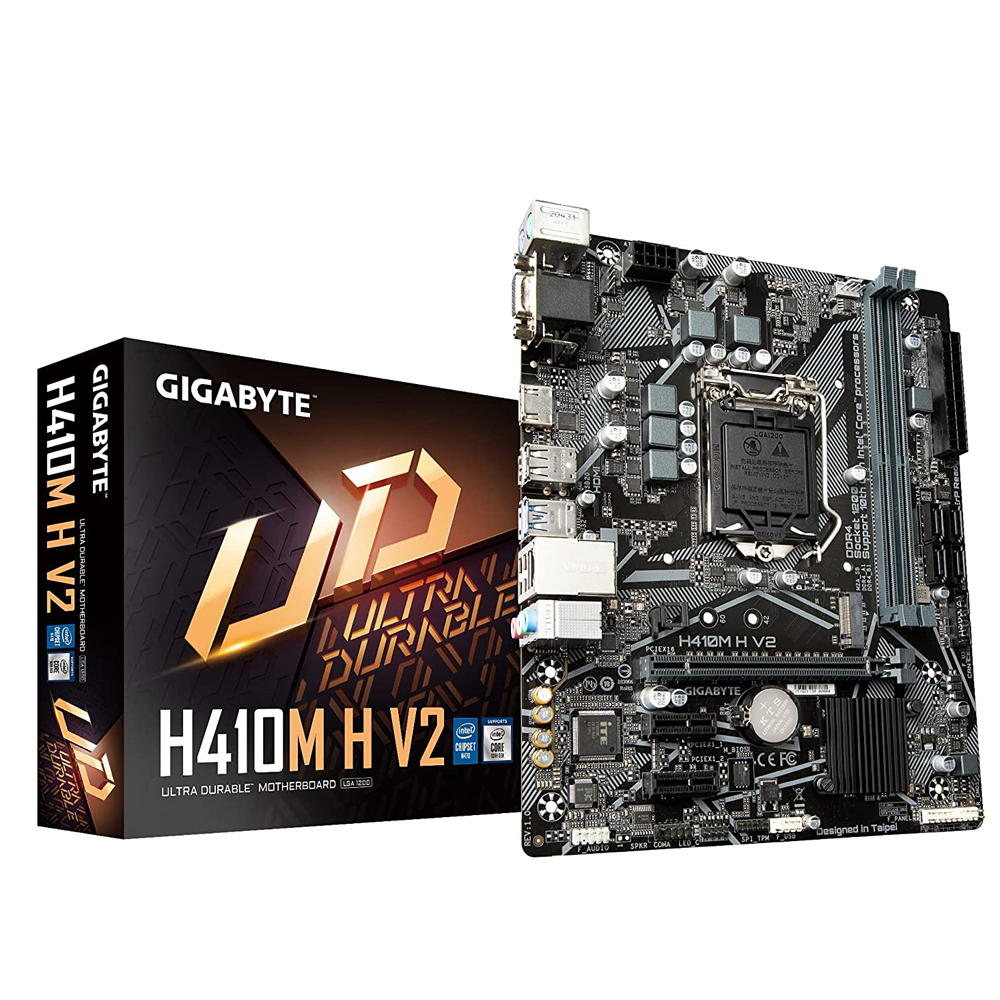

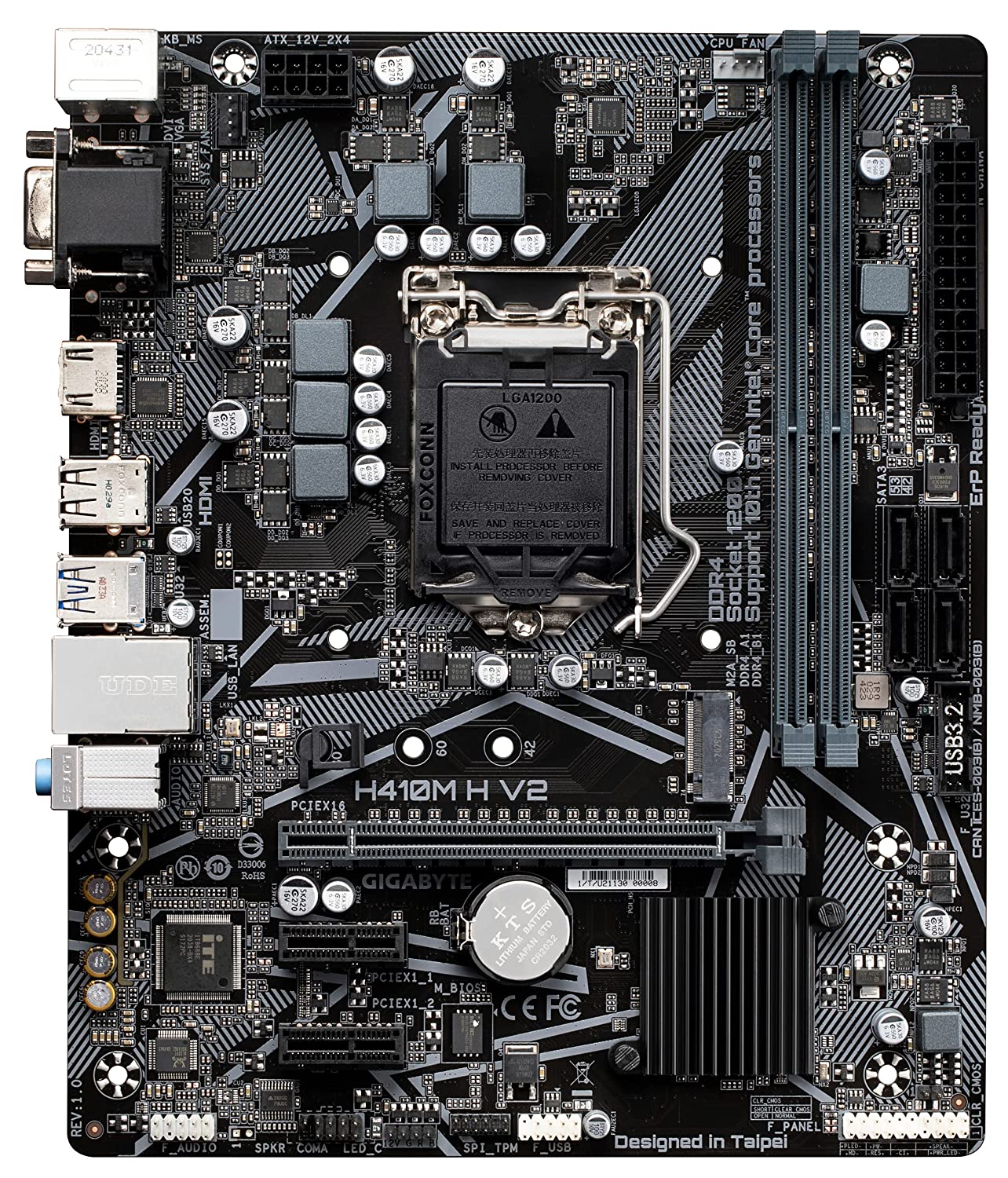

GIGABYTE H410M H V2 Ultra Durable Motherboard

  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
Compare

GIGABYTE H410M H V2 Ultra Durable Motherboard

GIGABYTE H410M H V2 Specification:

  • CPU: Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package, L3 cache varies with CPU(Please refer “CPU Support List” for more information.)
  • GIGABYTE H410M H V2 Chipset: Intel® H470 Express Chipset
  • GIGABYTE H410M H V2 Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support,1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz,1 x HDMI ports, supporting a maximum resolution of 4096×[email protected] Hz, Support for HDMI 1.4 version and HDCP 2.3., Maximum shared memory of 512 MB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • GIGABYTE H410M H V2 LAN
    1. Intel® GbE LAN chip (1 Gbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
      (The PCI Express slots conform to PCI Express 3.0 standard.)

    Supports up to ASPM L1.2 power management protocols.

  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    4. Intel® Optane™ Memory Ready

    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

  • GIGABYTE H410M H V2 USB

    Chipset:

    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x RGB LED strip header
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 1 x serial port header
    13. 1 x Clear CMOS jumper

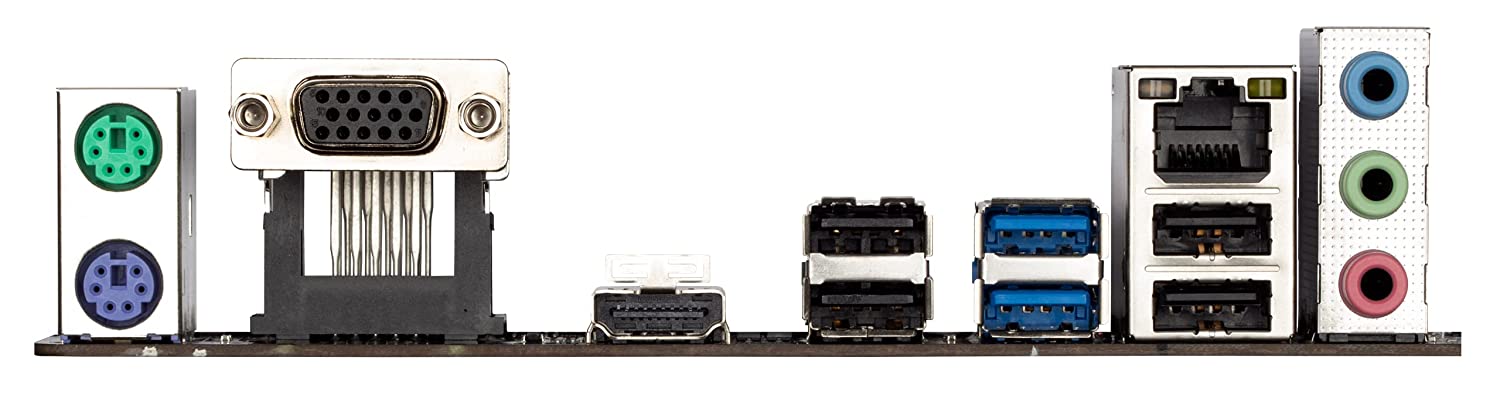

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 18.5cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

    Read More: https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10#kf

    Related Products: https://www.pcisland.in/product-category/pc-parts/motherboard/?product_brand=gigabyte

Additional information

Weight .500 kg
Dimensions 25 × 19 × 5 cm
