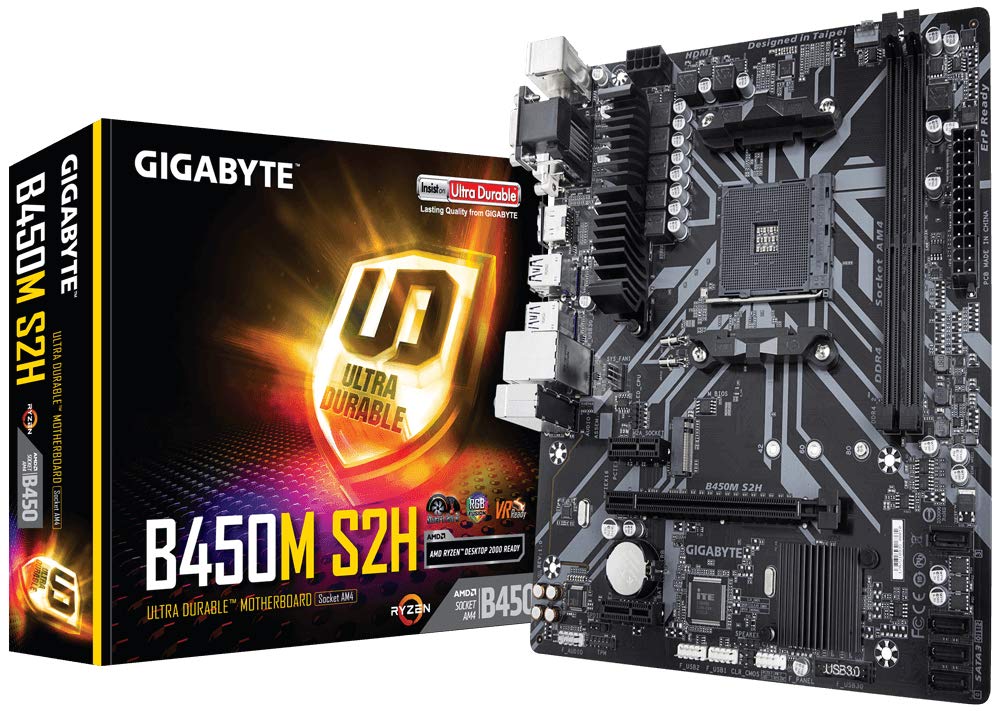

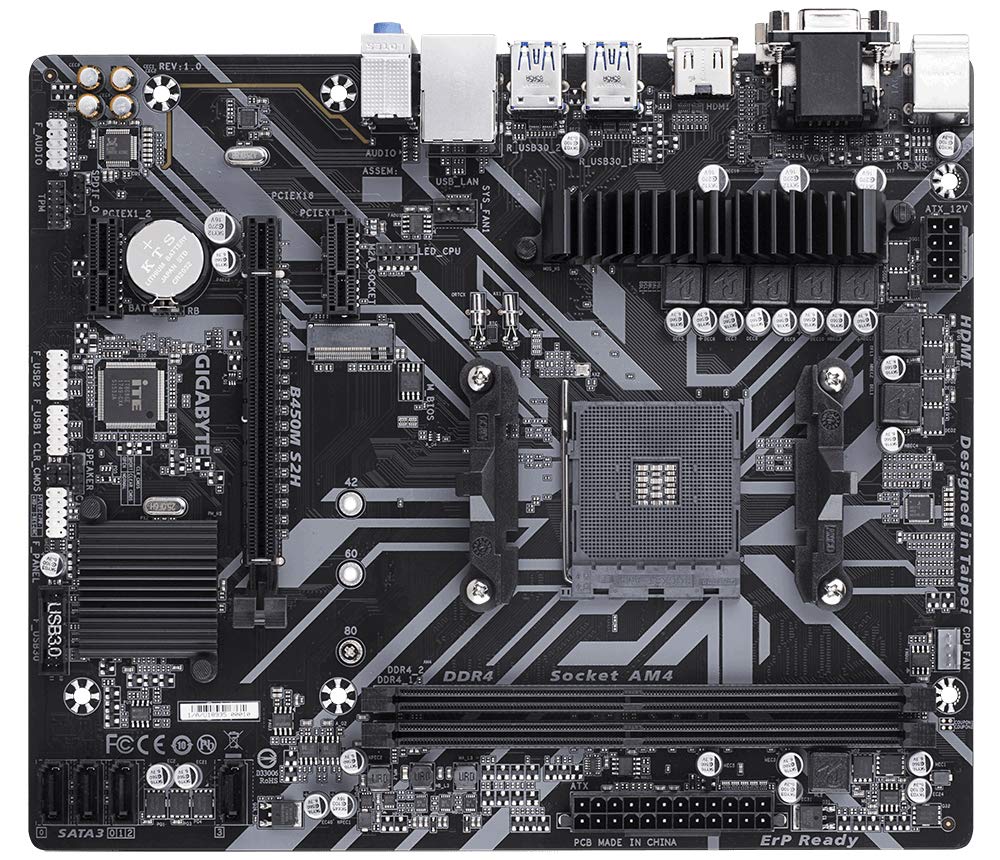

GIGABYTE B450 Ultra Durable Motherboard , Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2

7,099.00

Out of stock

Get a notification when the item is back in stock.

  • Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • HDMI, DVI-D, D-sub Ports for Multiple Display

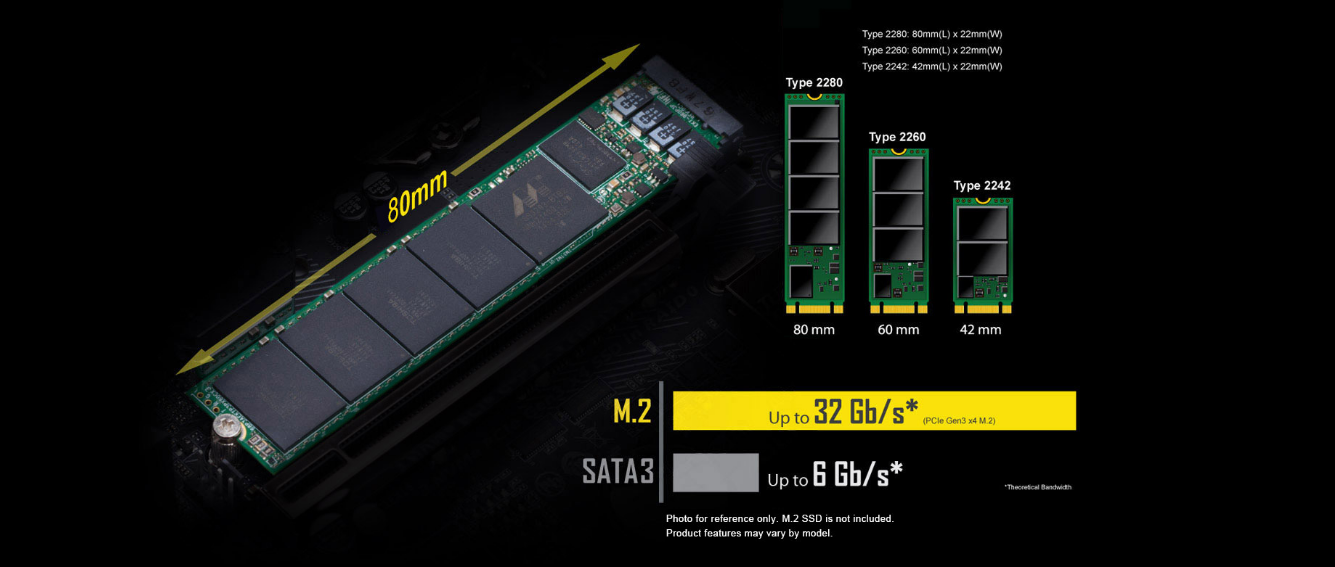

  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • High Quality Audio Capacitors and Audio Noise Guard Design

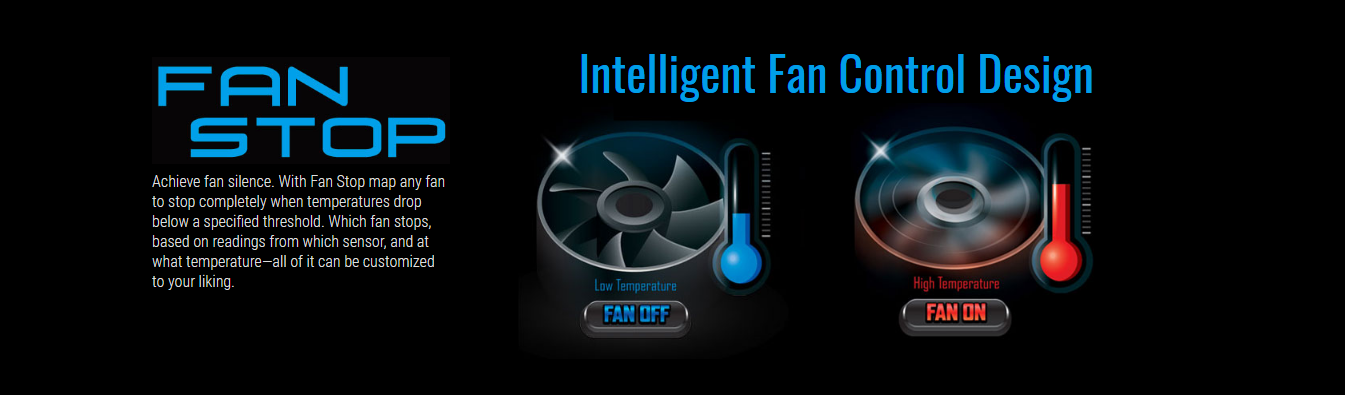

  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE B450 Ultra Durable Motherboard , Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2
Compare
SKU: B450M S2H Category: Tags: , , , ,

Description

Specification

Additional information

Weight 0.45 kg
Dimensions 23 × 20 × 1 cm
CPU

AM4 Socket: Supports AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

Chipset

Memory

* 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Dual channel memory architecture
* Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
* Support for Extreme Memory Profile (XMP) memory modules

Audio

* Realtek® Audio CODEC
* High Definition Audio
* 2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
* Support for S/PDIF Out

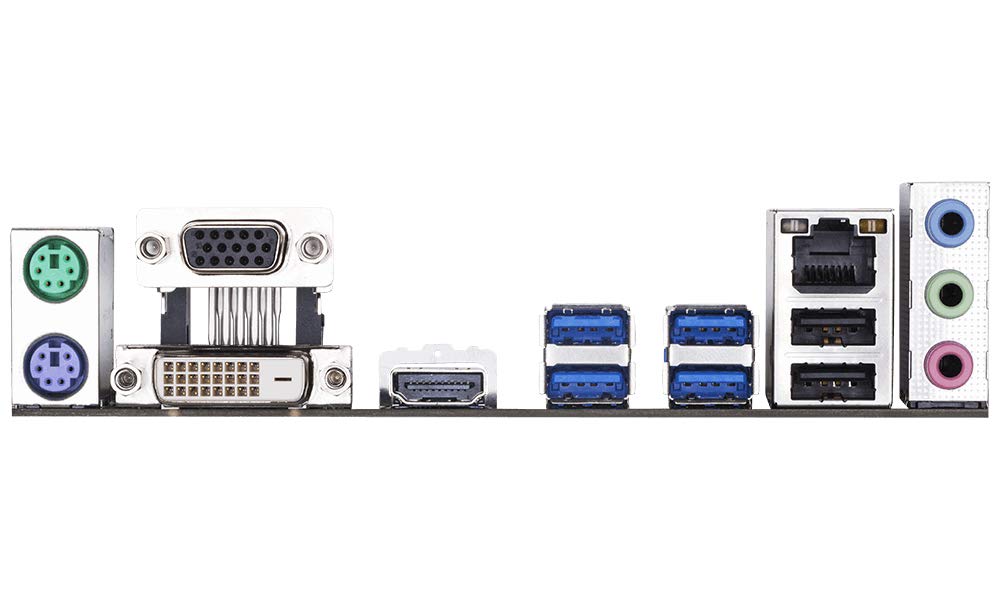

Back Panel Connectors

* 1 x PS/2 keyboard port
* 1 x PS/2 mouse port
* 1 x D-Sub port
* 1 x DVI-D port
* 1 x HDMI port
* 4 x USB 3.1 Gen 1 ports
* 2 x USB 2.0/1.1 ports
* 1 x RJ-45 port
* 3 x audio jacks
* I/O Controller

BIOS

* 1 x 128 Mbit flash
* Use of licensed AMI UEFI BIOS
* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
