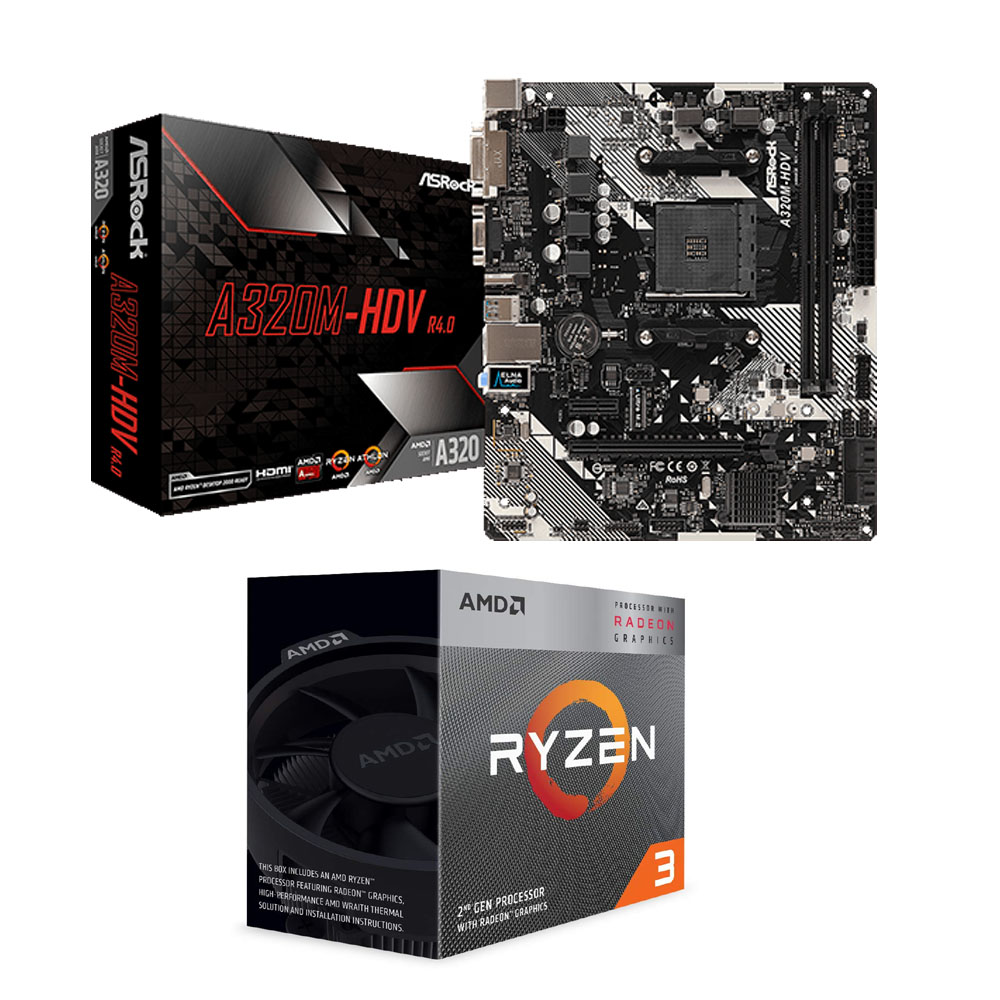

AMD Ryzen 3 3200G And ASRock A320M HDV Motherboard R4.0 Combo
Roll over image to zoom in
₹16,199.00
AMD Ryzen 3 3200G And ASRock A320M HDV Motherboard
- AMD AM4 Socket
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
- Actual support may vary by CPU.
Processor:
- 4 Cores & 4 Threads
- Base Clock: 3.6GHz, Max Boost Clock: up to 4GHz, 6MB Cache, TDP: 65W
- System Memory Specification: 2933MHz, System Memory Type: DDR4, Memory Channels: 2
- Socket: AM4, Motherboard Compatibility: AMD 300, 400,serles chipset based motherboards
- Graphics: AMD Radeon Vega 8 Graphics, Heatsink Fan: Wraith Stealth, Warranty: 3 Years
- 3 Years Brand Warranty. For Technical Support : Please Contact : Tel: +91-80-67030050 (Mon-Fri: 09:00 – 17:00 IST); Expect Delayed Response due to ongoing COVID Crisis
AMD Ryzen 3 3200G And ASRock A320M HDV Motherboard
AMD Ryzen 3 3200G Specification:
- No of CPU Cores: 4
- No of Threads: 4
- No of GPU Cores: 8
- Base Clock: 3.6GHz
- Max Boost Clock : Up to 4.0GHz
- Total L1 Cache: 384KB
- Total L2 Cache: 2MB
- Total L3 Cache: 4MB
- Unlocked : Yes
- CMOS: 12nm FinFET
- Package: AM4
- PCI Express® Version: PCIe® 3.0 x8
- Thermal Solution (PIB): Wraith Stealth
- Thermal Solution (MPK): Wraith Stealth
- Default TDP / TDP: 65W
- cTDP: 45-65W
- Max Temps: 95°C
- *OS Support: Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
- *Operating System (OS) support will vary by manufacturer.
- System Memory Specification: Up to 2933MHz
- System Memory Type: DDR4
- Memory Channels: 2
- Graphics Frequency: 1250 MHz
- Graphics Model: Radeon™ Vega 8 Graphics
- Graphics Core Count: 8
- Display Port: Yes
- HDMI™: Yes
- Product Family: AMD Ryzen™ Processors
- Product Line: AMD Ryzen™ 3 Desktop Processors with Radeon™ Vega Graphics
- Platform: Boxed Processor
- OPN Tray: YD3200C5M4MFH
- OPN PIB: YD3200C5FHBOX
- OPN MPK: YD3200C5FHMPK
- Launch Date: 7/7/2019
ASRock A320M-HDV R4.0 Specification:
-
Unique FeatureASRock Super Alloy
– High Density Glass Fabric PCB
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
CPU– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– 6 Power Phase design
– Supports CPU up to 105W -
Chipset– AMD Promontory A320
-
Memory– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 32GB**
– 15μ Gold Contact in DIMM Slots*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.A-Series APUs:
Ryzen Series CPUs (Matisse):
Ryzen Series CPUs (Pinnacle Ridge):
Ryzen Series CPUs (Picasso):
Ryzen Series CPUs (Summit Ridge):
Ryzen Series CPUs (Raven Ridge):
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
-
BIOS– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment -
Graphics– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
-
Audio– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection -
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE -
SlotsAMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*– 1 x PCI Express 2.0 x1 Slot*Supports NVMe SSD as boot disks -
Storage– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit -
Connector– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
-
Rear Panel I/O– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone -
Software and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket -
Hardware Monitor– CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore -
Form Factor– Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
– Solid Capacitor design -
OS– Microsoft® Windows® 10 64-bit
-
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Read More about ASRock A320M HDV Motherboard: https://www.asrock.com/mb/amd/a320m-hdv%20r4.0/index.asp
Read More about AMD Ryzen 3 3200G: https://www.amd.com/en/products/apu/amd-ryzen-3-3200g
Related Products: https://www.pcisland.in/product-category/pc-parts/motherboard/
Additional information
Weight | 2.3 kg |
---|---|
Dimensions | 50 × 17 × 42 cm |
