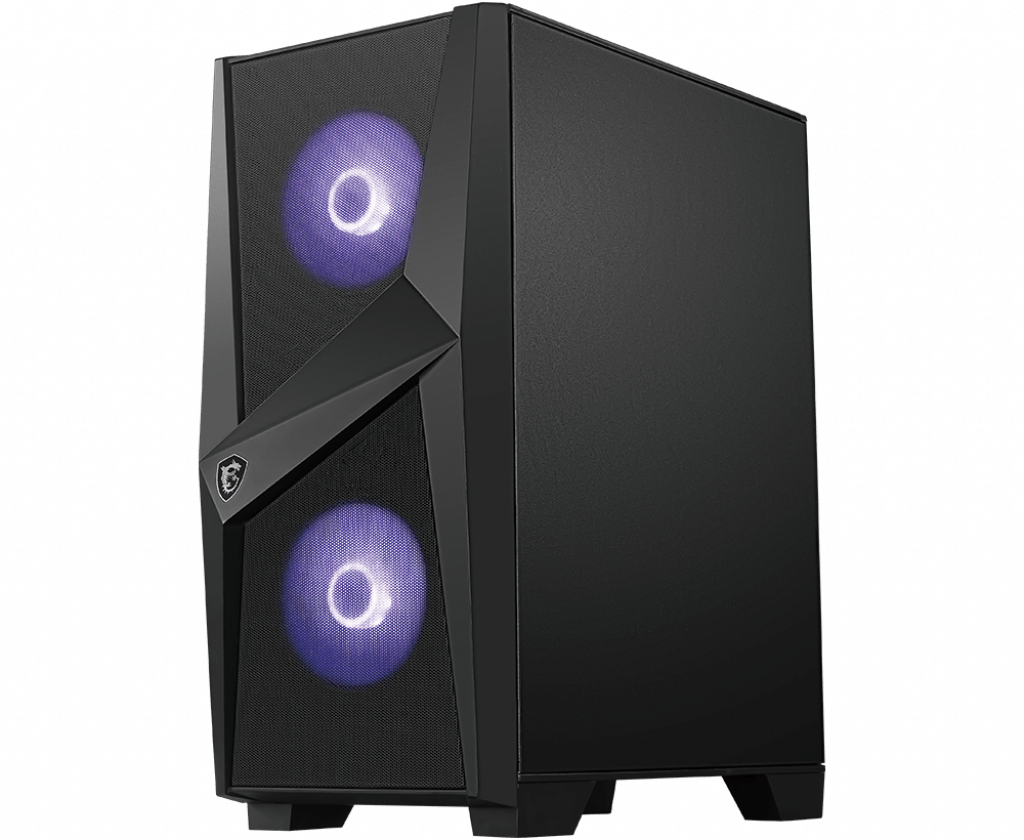

MSI MAG FORGE 100M Cabinet (Free ARGB Fan)

4,199.005,999.00 (-30%)

In stock

MSI MAG FORGE 100M Cabinet

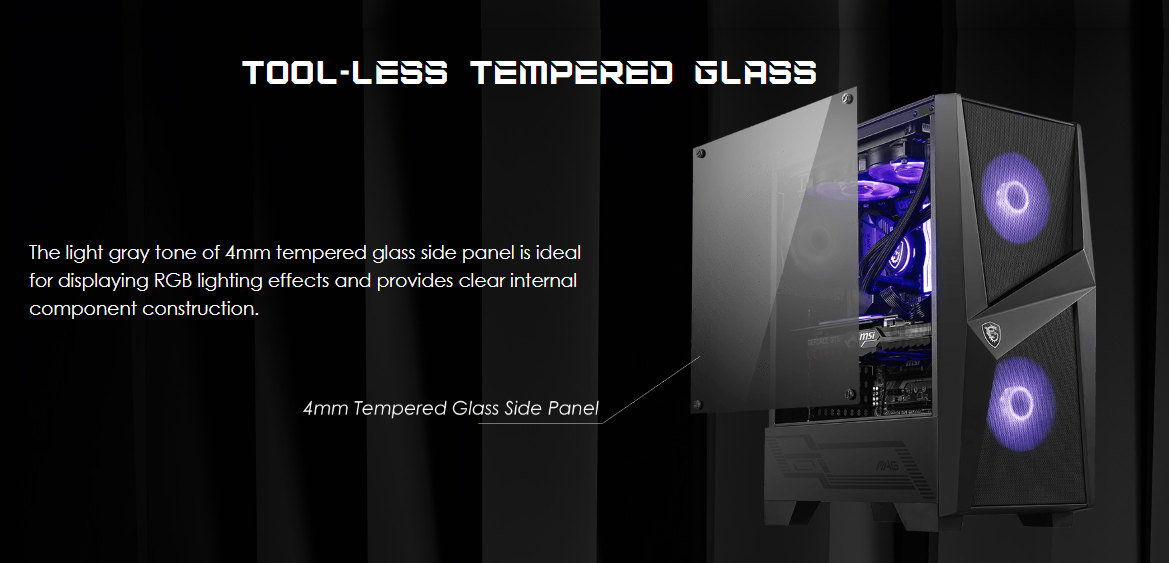

The MSI MAG FORGE 100M Cabinet thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

  • MSI MAG Forge 100M chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
  • Optimize Airflow
  • RGB Fan included
  • 4mm Tempered Glass
  • 330 mm Radiator Support
  • 160 mm CPU Cooler Support
Compare

MSI MAG FORGE 100M Cabinet

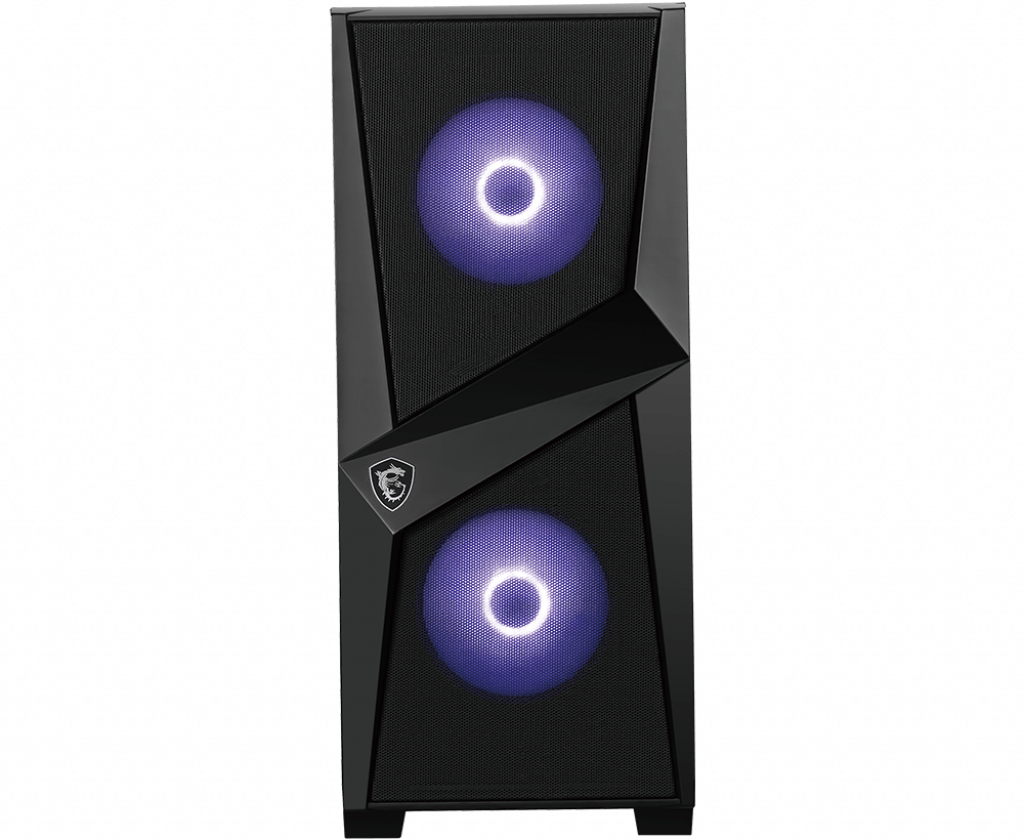

Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MSI MAG FORGE 100M Cabinet.

* To guide the airflow from the radiator, please evaluate and adjust the airflow direction of the top fan when installing the radiator.

READY FOR OPTIMIZED MOTHERBOARD

Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

MSI MAG FORGE 100M Cabinet Supports
ATX / Micro ATX / Mini-ITX

BUILT FOR A PRIME FAN AND RADIATOR CAPACITY

COOLING LAYOUT

Front: Up to 3 x 120 mm or 2 x 140 mm
Top: Up to 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm

PRE-INSTALL FAN

Front: 2 x 120 mm RGB LED Fan included
Rear: 1 x 120mm System Fan included

RADIATOR LAYOUT

Top – support 120 / 240 mm radiator
Front – support 120 / 240 mm radiator
Rear – support 120 radiator

BUILT FOR OPTIMIZED CASE STRUCTURE

Specification :

ModelMSI MAG Forge 100M CABINET
I/O Ports2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1 x Mic
Driver Bays2 x 3.5” (compatible with 2.5”) + 3 x 2.5”
Case Expansion Slots7
Maximum GPU Length330 mm
Maximum CPU Cooler Length160 mm
Radiator Compatibility120 / 140 / 240 mm
Power SupplyStandard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed)
Cooling LayoutFront: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm
Rear: Up to 1 x 120 mm
Pre-install FanFront:2 x 120 mm RGB LED Fan included
Rear:1 x 120 mm System Fan included
Radiator LayoutFront: Up to 240 mm
Top: Up to 240 mm
Rear: Up to 120 mm
Form FactorMid-Tower
Support MB Form FactorATX / mATX / Mini-ITX
Dimension421(D) x 210(W) x 499(H) mm
17.05(D) x 8.27(W) x 19.65(H) inch
Weight5.64 kg
Warranty1 Year



Read More: MAG FORGE 100M | Gaming Case | The Most Innovative, Sophisticated and Customizable Gaming Chassis (msi.com)

Related Products: Cabinet – PC ISLAND

Additional information

Weight 5.64 kg
Dimensions 42.1 × 21 × 49.9 cm
Manufacturer

Form Factor

I/O

DRIVER BAYS

CASE EXPANSION SLOTS

7

MAXIMUM GPU LENGTH

330 mm

MAXIMUM CPU COOLER LENGTH

160 mm

POWER SUPPLY

Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed)

COOLING LAYOUT

Front:Up to 3 x 120 mm / 2 x 140 mm
Top:Up to 2 x 120 mm / 2 x 140 mm
Rear:Up to 1 x 120 mm

PRE-INSTALL FAN

Front:2 x 120 mm RGB LED Fan included
Rear:1 x 120 mm System Fan included

RADIATOR LAYOUT

Front:Up to 240 mm
Top:Up to 240 mm
Rear:Up to 120 mm

SUPPORT MB FORM FACTOR

ATX / mATX / Mini-ITX
