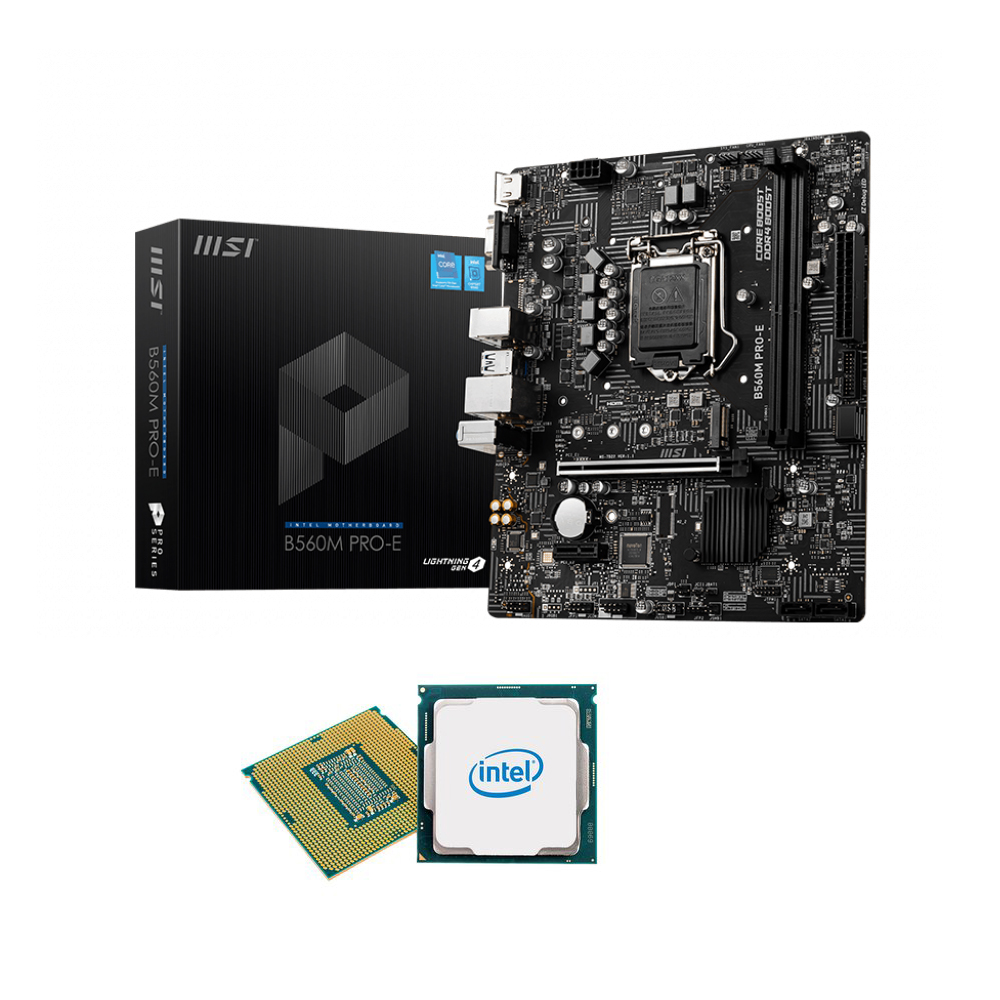

MSI B560M PRO-E Motherboard And Intel Core i5-11400 Desktop Processor OEM Packing Combo

24,999.0029,940.00 (-17%)

In stock

MSI B560M PRO-E Motherboard And Intel Core i5-11400 Desktop Processor OEM Packing Combo

Compare

MSI B560M PRO-E Motherboard And Intel Core i5-11400 Desktop Processor OEM Packing Combo
i5-10400

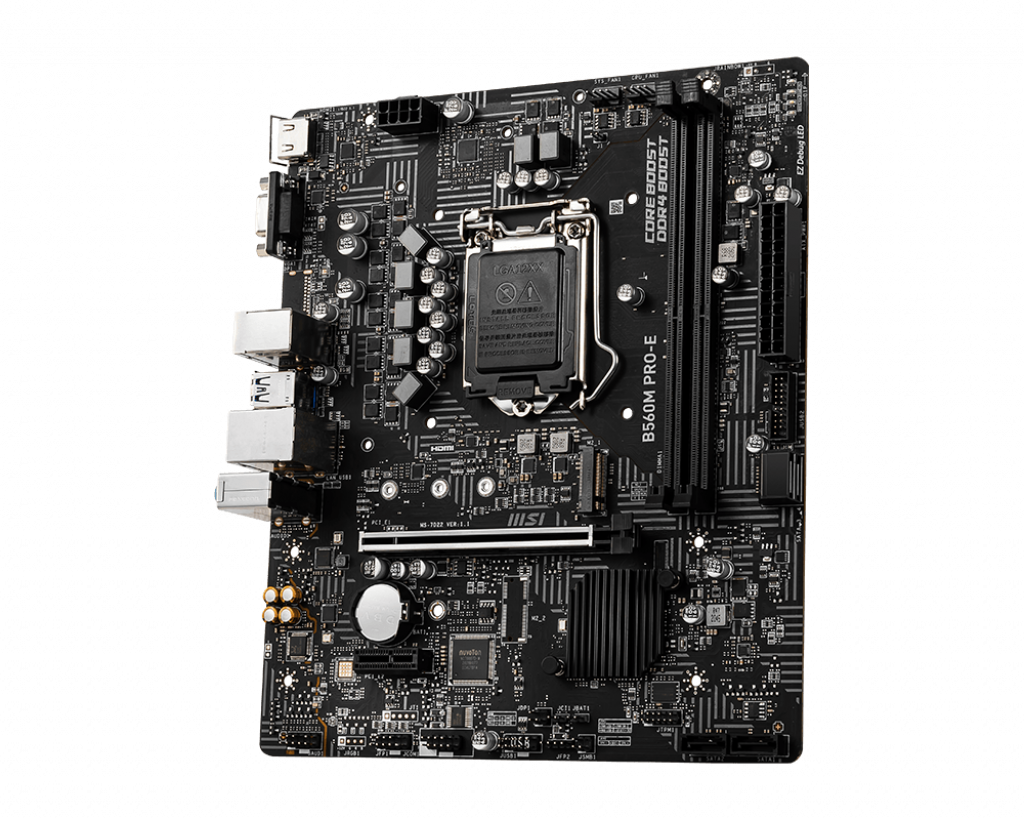

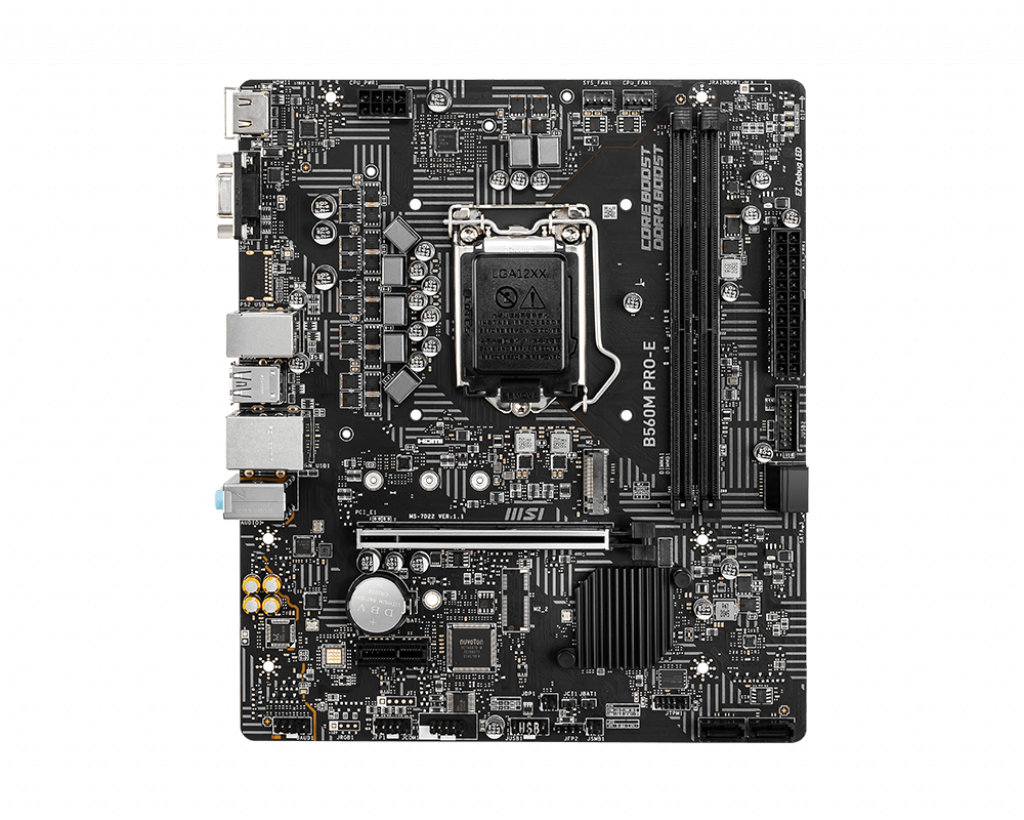

MSI B560M PRO-E Motherboard

MSI B560M PRO-E Motherboard And Intel Core i5-11400 Specification:

CPU:
  • Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core  Processors, Pentium® Gold and Celeron® Processors1
  • Processor socket LGA1200
CHIPSET
  • Intel® B560 chipset
MEMORY
  • 2x DDR4 memory slots, support up to 64GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800 MHz
    • 1DPC 2R Max speed up to 4600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
  • 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz1
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
AUDIO

Realtek® ALC892/ ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
1x Intel® I219V 1Gbps LAN controller
STORAGE
Intel® B560 Chipset
  • 4x SATA 6Gb/s ports (From B560 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From B560 Chipset)
      • Supports up to PCIe 3.0 x4
      • Supports SATA 6Gb/s1
      • Supports 2242/ 2260/ 2280 storage devices
  1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
Intel® B560 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)
FORM FACTOR
  • mATX Form Factor
  • 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
BIOS FEATURES
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SMBIOS 3.0
  • Multi-language
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector

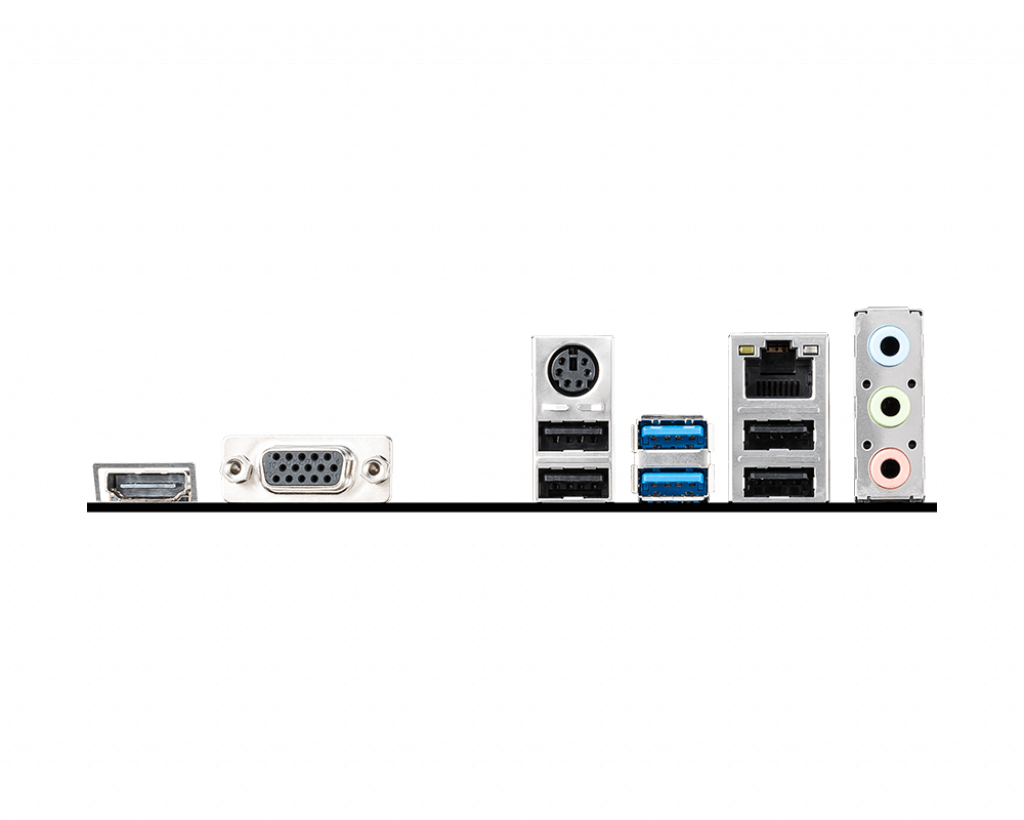

BACK PANEL CONNECTORS
  1. HDMI
  2. VGA
  3. Mouse / Keyboard
  4. LAN port
  5. Audio connector
  6. USB 2.0
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 2.0
MSI Z490-A PRO back panel ports
BOX CONTENT
MSI B560M PRO-E box content

Intel Core i5-11400 Desktop Processor

MSI B560M PRO-E Motherboard And Intel Core i5-11400 Specification:

Intel Core i5-11400 Essentials

  • Product Collection: 11th Generation Intel® Core™ i5 Processors
  • Code Name: Products formerly Rocket Lake
  • Vertical Segment: Desktop
  • Processor Number: i5-11400
  • Status: Launched
  • Intel Core i5-11400 Launch Date: Q1’21
  • Lithography: 14 nm
  • Use Conditions: PC/Client/Tablet

Intel Core i5-11400 CPU Specifications

  • Intel Core i5-11400 No. of Cores: 6
  • Intel Core i5-11400 No. of Threads: 12
  • Processor Base Frequency: 2.60 GHz
  • Max Turbo Frequency: 4.40 GHz
  • Cache: 12 MB Intel® Smart Cache
  • Bus Speed: 8 GT/s
  • Intel® Turbo Boost Technology 2.0 Frequency: 4.40 GHz
  • TDP: 65 W

Supplemental Information

  • Embedded Options Available: No

Memory Specifications

  • Max Memory Size (dependent on memory type): 128 GB
  • Memory Types: DDR4-3200
  • Max no. of Memory Channels: 2
  • Max Memory Bandwidth: 50 GB/s
  • ECC Memory Supported : No

Intel Core i5-11400 Processor Graphics

  • Processor Graphics: Intel® UHD Graphics 730
  • Graphics Base Frequency: 350 MHz
  • Graphics Max Dynamic Frequency: 1.30 GHz
  • Graphics Video Max Memory: 64 GB
  • Execution Units: 24
  • 4K Support: Yes, at 60Hz
  • Max Resolution (HDMI): 4096×[email protected]
  • Max Resolution (DP): 5120 x 3200 @60Hz
  • Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @60Hz
  • DirectX* Support: 12.1
  • OpenGL* Support: 4.5
  • Intel® Quick Sync Video: Yes
  • Intel® InTru™ 3D Technology: Yes
  • Intel® Clear Video HD Technology: Yes
  • Intel® Clear Video Technology: Yes
  • # of Displays Supported : 3
  • Device ID: 0x4C8B
  • OpenCL* Support: 3.0

Expansion Options

  • Scalability: 1S Only
  • PCI Express Revision: 4.0
  • PCI Express Configurations : Up to 1×16+1×4, 2×8+1×4, 1×8+3×4
  • Max # of PCI Express Lanes: 20

Package Specifications

  • Sockets Supported: FCLGA1200
  • Max CPU Configuration: 1
  • Thermal Solution Specification: PCG 2019C
  • TJUNCTION: 100°C
  • Package Size: 37.5 mm x 37.5 mm

Advanced Technologies

  • Intel® Deep Learning Boost (Intel® DL Boost): Yes
  • Intel® Optane™ Memory Supported : Yes
  • Intel® Thermal Velocity Boost: No
  • Intel® Turbo Boost Max Technology 3.0: No
  • Intel® Turbo Boost Technology: 2.0
  • Intel vPro® Platform Eligibility: No
  • Intel® Hyper-Threading Technology: Yes
  • Intel® Virtualization Technology (VT-x) : Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set:  ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel® Identity Protection Technology: Yes
  • Intel® Stable Image Platform Program (SIPP): No
  • Intel® Gaussian and Neural Accelerator 2.0: Yes

Security & Reliability

  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® Software Guard Extensions (Intel® SGX): No
  • Intel® OS Guard: Yes
  • Intel® Trusted Execution Technology: No
  • Execute Disable Bit: Yes
  • Intel® Boot Guard: Yes

Read More About MSI B560M PRO-E Motherboard: https://www.msi.com/Motherboard/B560M-PRO-E/Overview

Related Product About MSI B560M PRO-E Motherboard: https://www.pcisland.in/product-category/pc-parts/motherboard/

Read More About Intel Core i5-11400 Desktop Processor: https://ark.intel.com/content/www/us/en/ark/products/212270/intel-core-i511400-processor-12m-cache-up-to-4-40-ghz.html

Related Product About Intel Core i5-11400 Desktop Processor: https://www.pcisland.in/product-category/pc-parts/processor/
