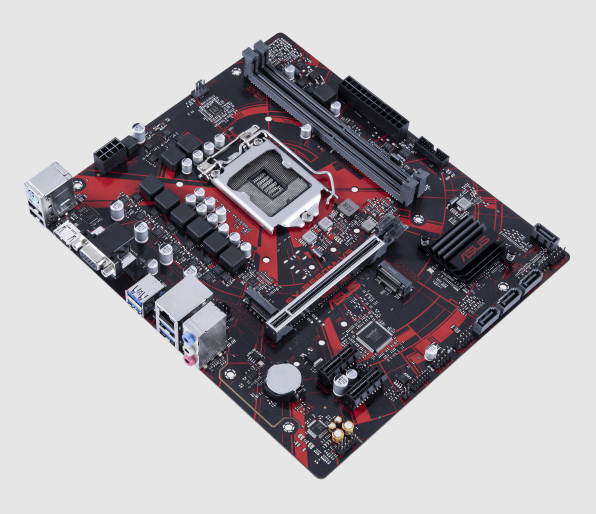

ASUS EX-B560M-V5 Motherboard

9,300.0010,500.00 (-11%)

Out of stock

Get a notification when the item is back in stock.

ASUS EX-B560M-V5 Motherboard:

  • Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
  • Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
  • Non-stop gaming: ASUS Beyond VR ready and Epic audio
  • Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more

ASUS EX-B560M-V5 Motherboard

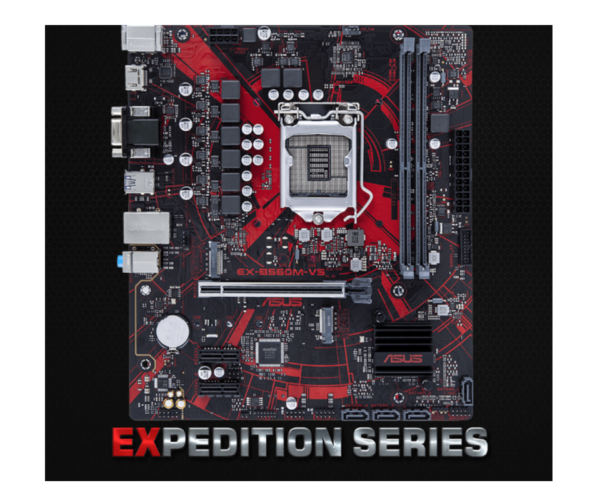

ASUS Expedition: Ready for non-stop battle
ASUS EX-B560M-V5 Motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!


Exceptional stability and protection

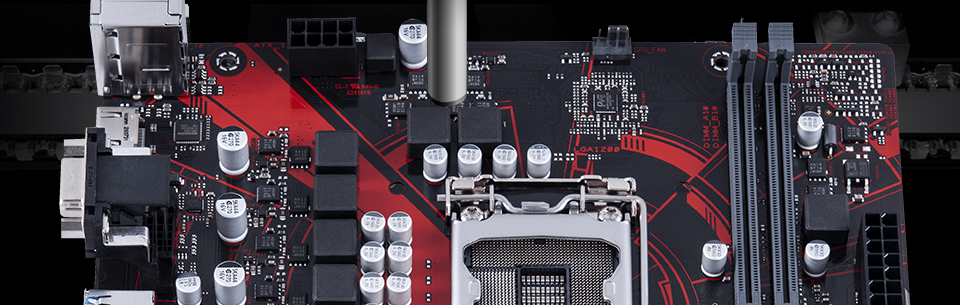

ASUS EX-B560M-V5 Motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.ASUS EX-B560M-V5 MOTHERBOARD

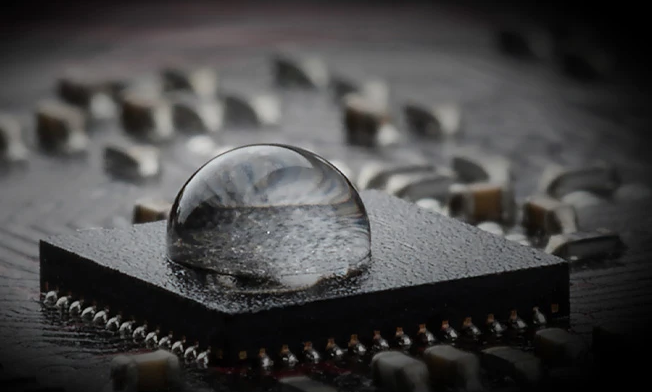

Luminous Anti-moisture Coating

Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your ASUS EX-B560M-V5 Motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé , data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.


ASUS EX-B560M-V5 Motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world’s leading motherboard brand.



Overvoltage Protection: An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DIGI+ Voltage-Regulator Module: The ASUS-exclusive Digi+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O: Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that’s three times (3X) longer than ordinary panels.

Acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you’re a PC novice or a seasoned overclocker, the iCafe and Advanced Modes help you find your way, quickly and easily.


Improved DDR4 Performance

Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. Improved DDR4 Performance technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

* Top layer – ground ring to prevent lateral interference

Benefits of Improved DDR4 Performance:

Improved memory stability and compatibility

Allows lower memory latencies at equivalent voltages

Improved memory frequency margin

Dual M.2 slots (up to 64 Gbps)

EX-B560M-V5 offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2_1 supports PCIe 4.0, and the M.2_2 supports PCIe 3.0.

PCIe® 4.0 Slot

ASUS B560 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand

Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you’re offering the best performance and reliability. Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!

Epic gaming audio

Discover a whole new dimension of superior audio and get ready to rule!

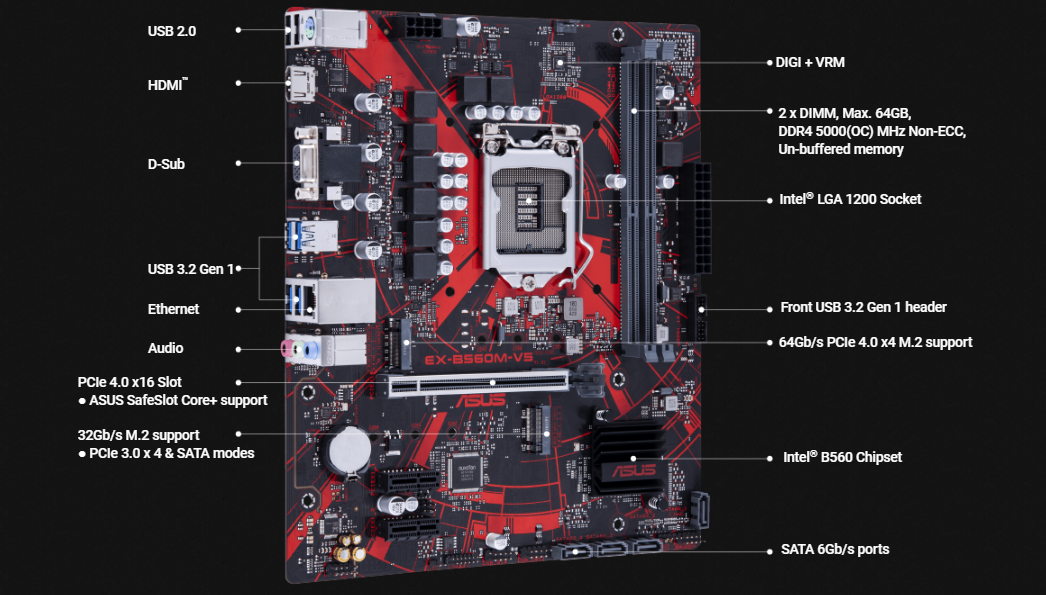

Technical Details of ASUS EX-B560M-V5 Motherboard:


  • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • *Refer to for CPU support list.
  • **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.


  • B560


  • Memory Channels:2DDR4 (Dual Channel)
    Max Memory Size:64GB
  • DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • *10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
  • * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively
  • * Refer to for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.


  • 1 x D-Sub
    1 x HDMI™ 1.4 / 2.0***
  • ** Only Intel® 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to for any updates.

Expansion Slots:

  • Intel® 11th &10th   Gen Processors
  • 1 x PCIe 4.0/3.0 x16 slot
  • – Intel® 11th Gen processors support PCIe 4.0 x16
  • – Intel® 10th Gen processors support PCIe 3.0 x16
  • Intel® B560 Chipset
  • 2 x PCIe 3.0 x1 slots


  • Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel®11th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
  • – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  • Intel® B560 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports


  • 1 x Realtek 1Gb Ethernet
    ASUS LANGuard


  • Rear USB:Total 6 ports
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB:Front USB (Total 6 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers supports additional 4 USB 2.0 ports


  • ALC897/887
  • Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – Supports up to 24-Bit/192 kHz playback”

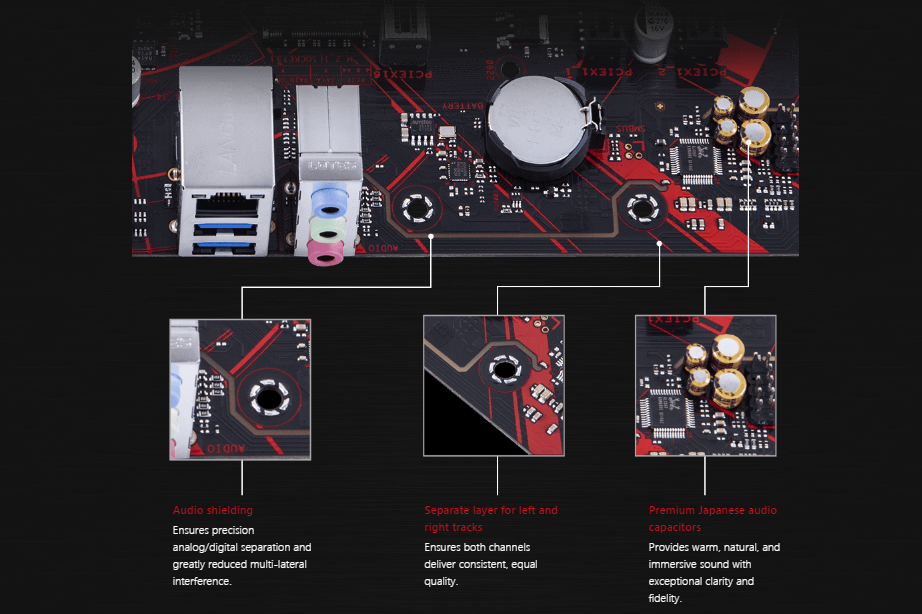

Audio Features:

  • – Premium Japanese audio capacitors
  • – Audio Shielding
  • – Dedicated audio PCB layers
  • *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Back Panel I/O Ports:

  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMITM port
  • 3 x Audio jacks
  • 1 x Realtek 1Gb Ethernet port
  • 1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors:

Fan and cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 2x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports


  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports


  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (14-1pin)
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header

Special Features:


  • – DIGI+ VRM
  • – LANGuard
  • – Overvoltage Protection
  • – SafeSlot Core+
  • – Stainless-Steel Back I/O

ASUS Q-Design

  • – Q-DIMM
  • – Q-Slot

Non-stop Challenger

  • – ASUS iCafe labs certified

Non-stop Durability

  • – Luminous anti-moisture coating
  • – USBGuard


  • 128 Mb Flash ROM, UEFI AMI BIOS


  • WOL by PME, PXE



  • 2 x SATA 6Gb/s cables


  • 1 x I/O Shield
  • 2 x M.2 ANCHOR

Installation Media

  • 1 x Support DVD


  • 1 x User manual

Operating System:

  • Windows® 10 64-bit

Form Factor:

  • mATX Form Factor
    9.6 inch x 8.3 inch(24.4cm x 21.1cm)

Read More about ASUS EX-B560M-V5 Motherboard:

Related Products:


Additional information

Weight 3 kg
Dimensions 24.4 × 21.1 × 5 cm


Max Memory Support

Memory Type
